Soldier Pile Wall with Precast Concrete Lagging Panels

Project Highlight

This project involved the design of a permanent driven steel soldier pile retaining wall to support significant grade changes along the boundary of a residential development. The retaining structure was designed to provide long-term stability while accommodating the site’s soil conditions and construction constraints.

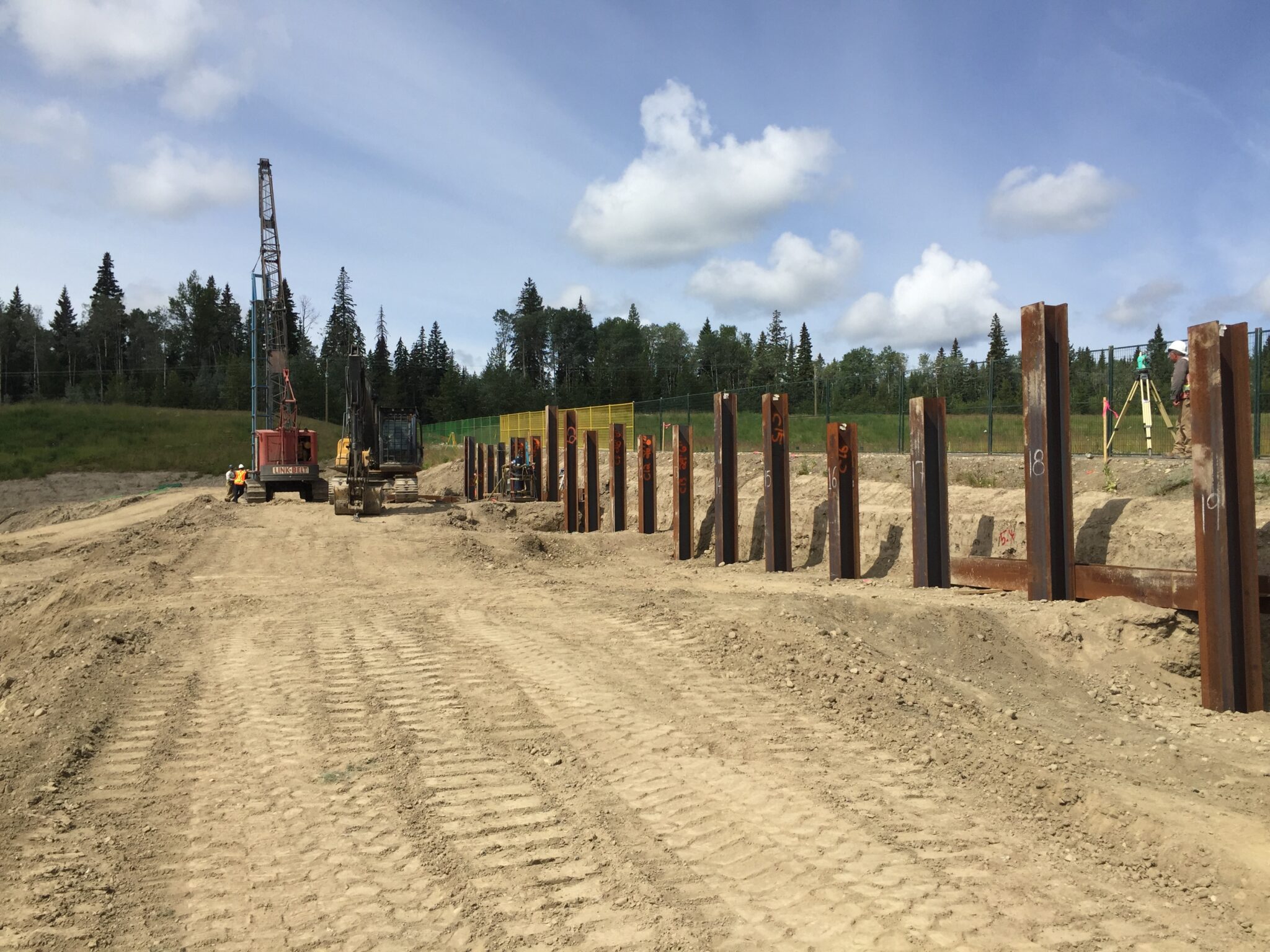

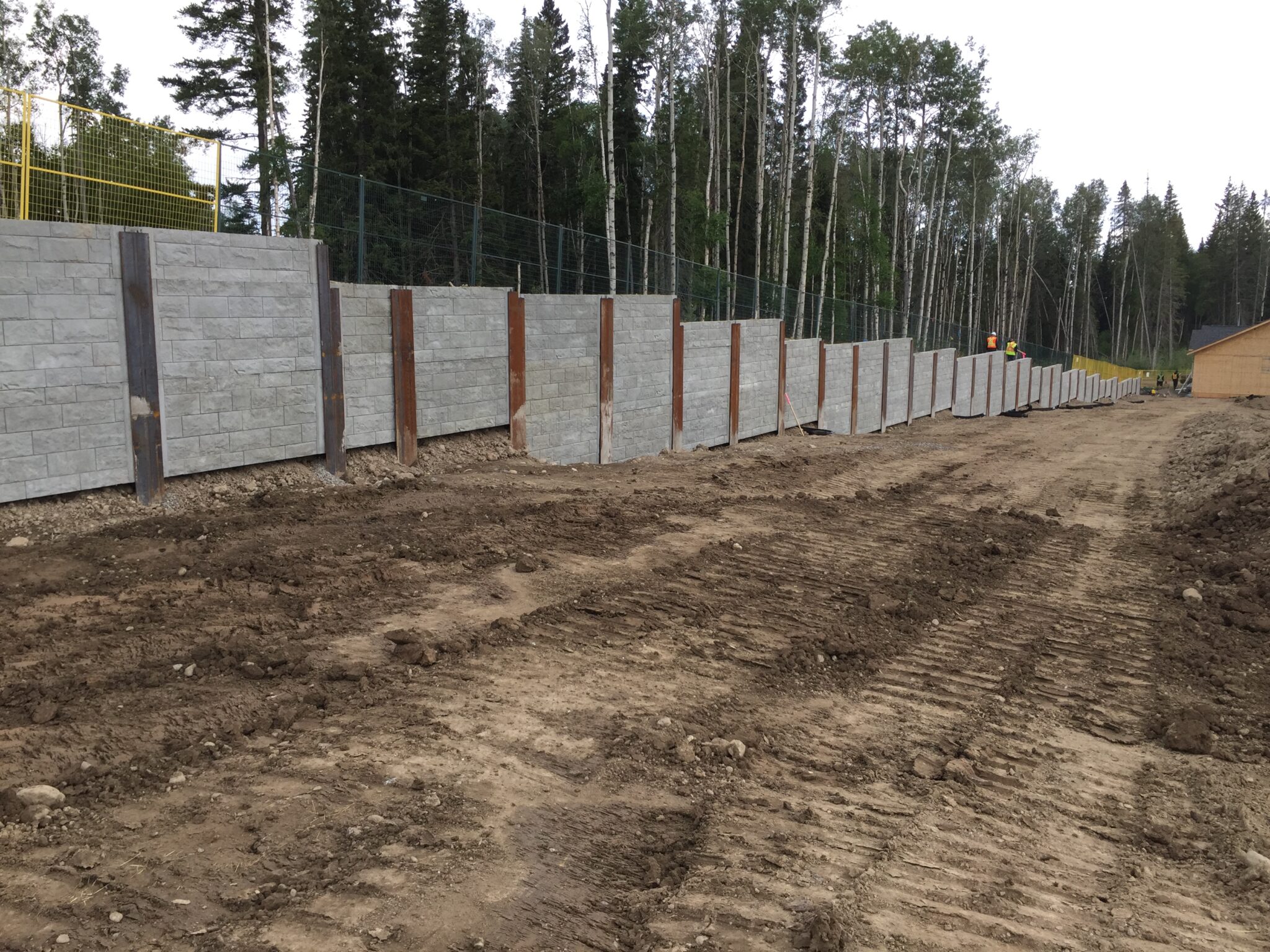

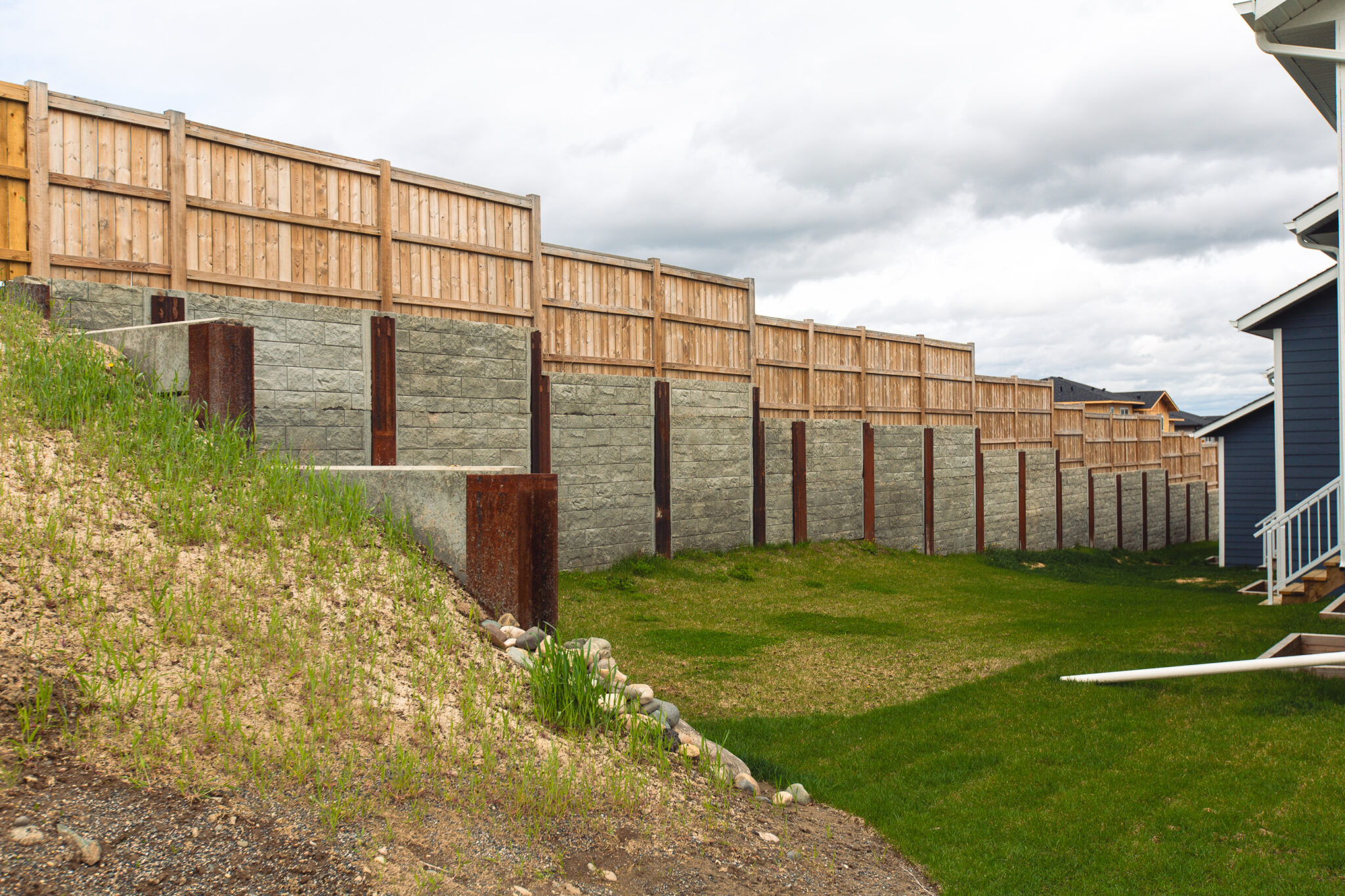

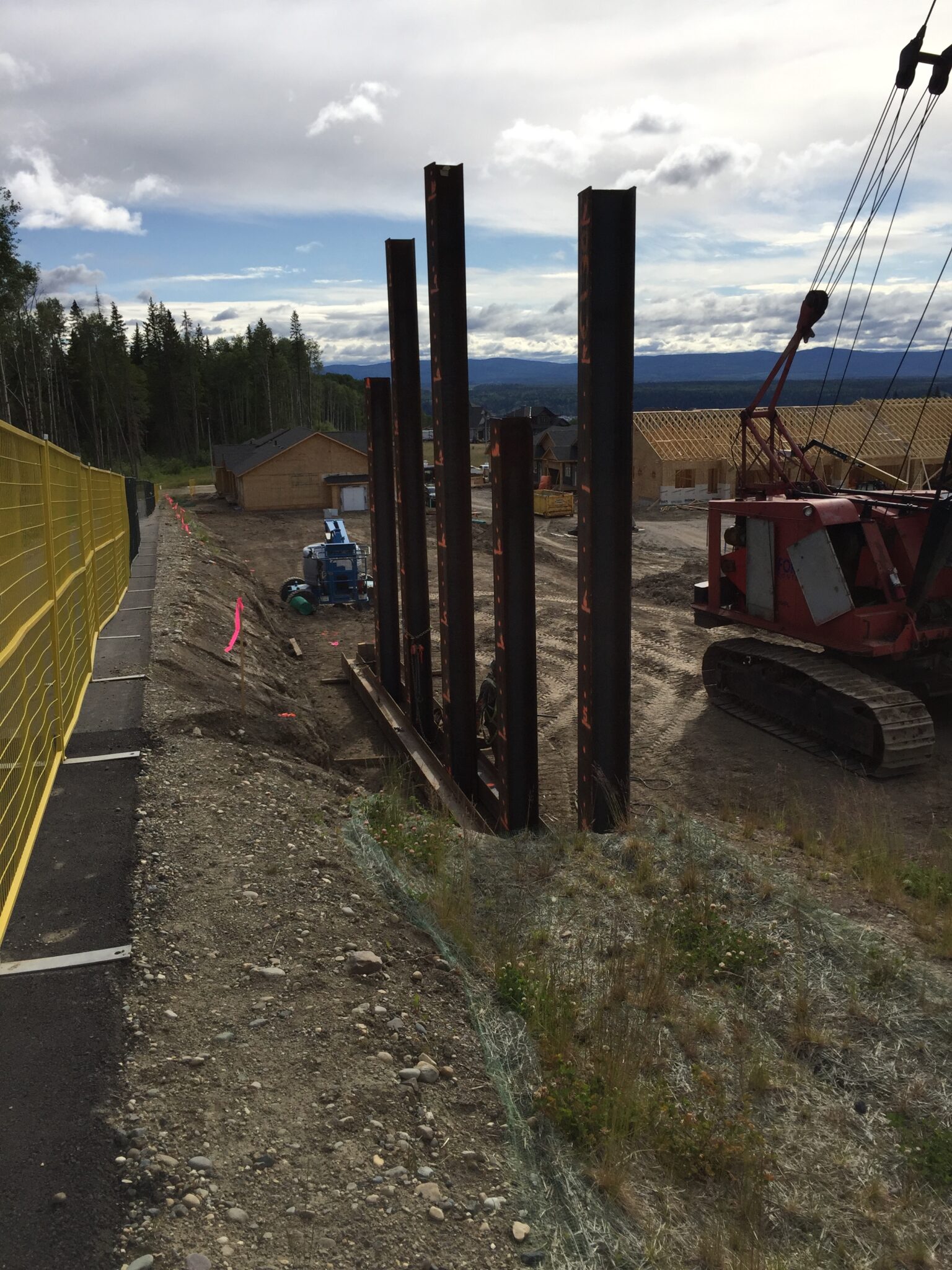

The system utilized driven steel soldier piles with precast concrete lagging panels to retain the adjacent ground while creating a durable and visually consistent finished wall.

Our scope included analysis and design of the steel piles, determination of pile spacing and embedment depth, and coordination of the precast concrete lagging system.
